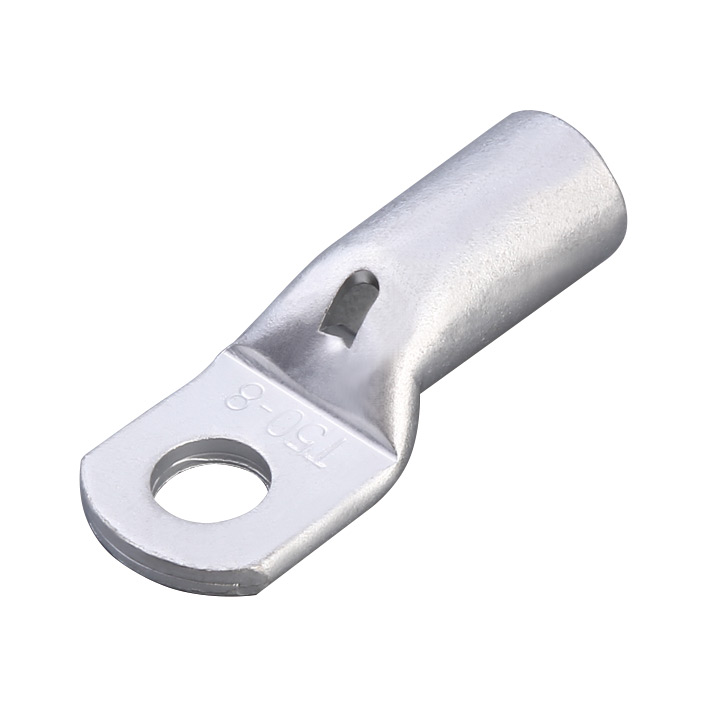

T copper tube terminals

T copper tube terminals

Application:
T Type Electrical Cable Crimp Copper Tube Terminal Lugs is a very popular wire accessory in Electrical Line specially for connect wire, they are very widely used in many lines with use wire.
1. distribution box
2. power station
3. electrical transformer, and so on.
T Type Electrical Cable Crimp Copper Tube Terminal Lugs are suitable for the connectionof copper conductors (section 1.5-1000²) in power cable with electronic equipment they are made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature -55 degree to 150 degree.

Categories: ,

Description

Item d1 D B E F L
T1.5-3 3.2 2.2 3.7 8 7 7 20
T1.5-4 4.2 2.2 3.7 8 7 7 20
T1.5-5 5.2 2.2 3.7 10 7 7 20
T1.5-6 6.2 2.2 3.7 10 7 7 20
T2.5-3 3.2 2.4 3.9 8 7 7 20
T2.5-4 4.2 2.4 3.9 8 7 7 20
T2.5-5 5.2 2.4 3.9 10 7 7 20
T2.5-6 6.2 2.4 3.9 10 7 7 20
T2.5-8 8.2 2.4 3.9 12.5 7 7 20
T4-4 4.2 2.8 4.5 10 7 8 20
T4-5 5.2 2.8 4.5 10 7 8 20
T4-6 6.2 2.8 4.5 10 7 8 20
T4-8 8.2 2.8 4.5 12.5 7 8 20
T6-4 4.2 3.8 5.5 10 9 9 24
T6-5 5.2 3.8 5.5 10 9 9 24
T6-6 6.2 3.8 5.5 10 9 9 24
T6-8 8.2 3.8 5.5 12.5 9 9 27
T6-10 10.2 3.8 5.5 15 9 9 27
T10-4 4.2 4.5 6.2 10 9 10 25
T10-5 5.2 4.5 6.2 10 9 10 25
T10-6 6.2 4.5 6.2 10 9 10 25
T10-8 8.2 4.5 6.2 12.5 9 10 27
T10-10 10.2 4.5 6.2 15 9 10 27
T16-5 5.2 5.4 7.1 10 12 11 27
T16-6 6.2 5.4 7.1 10 12 11 27
T16-8 8.2 5.4 7.1 12.5 12 11 30
T16-10 10.2 5.4 7.1 15 12 11 30
T16-12 12.5 5.4 7.1 16.5 12 11 30
T25-5 5.2 6.8 8.8 12.5 13 12 30
T25-6 6.2 6.8 8.8 12.5 13 12 30
T25-8 8.2 6.8 8.8 12.5 13 12 30
T25-10 10.2 6.8 8.8 15 13 12 32
T25-12 12.5 6.8 8.8 17 13 12 34
T35-5 5.5 8.2 10.6 15 14 14 35
T35-6 6.5 8.2 10.6 15 14 14 35
T35-8 8.5 8.2 10.6 15 14 14 35
T35-10 10.5 8.2 10.6 15 14 14 37
T35-12 12.5 8.2 10.6 18.5 14 14 37
T35-14 14.5 8.2 10.6 19 14 14 37
T50-6 6.5 9.5 12.4 18 16 17 43
T50-8 8.5 9.5 12.4 18 16 17 43
T50-10 10.5 9.5 12.4 18 16 17 43
T50-12 12.5 9.5 12.4 19 16 17 43
T50-14 15 9.5 12.4 21 16 17 43
T70-6 6.5 11.2 14.7 21 18 20 48
T70-8 8.5 11.2 14.7 21 18 20 48
T70-10 11 11.2 14.7 21 18 20 48
T70-12 12.5 11.2 14.7 21 18 20 48
T70-14 15 11.2 14.7 21 18 20 48
T70-16 17 11.2 14.7 24 18 20 50
T95-6 6.5 13.5 17.4 25.5 20 22 54
T95-8 8.5 13.5 17.4 25.5 20 22 54
T95-10 10.5 13.5 17.4 25.5 20 22 54
T95-12 13 13.5 17.4 25.5 20 22 54
T95-14 15 13.5 17.4 25.5 20 22 54
T95-16 17 13.5 17.4 25.5 20 22 54
T120-6 6.5 15 19.4 28 24 24 61
T120-8 8.5 15 19.4 28 24 24 61
T120-10 10.5 15 19.4 28 24 24 61
T120-12 13 15 19.4 28 24 24 61
T120-14 15 15 19.4 28 24 24 61
T120-16 17 15 19.4 28 24 24 61
T150-6 6.5 16.5 21.2 30.5 26 27 68
T150-8 8.2 16.5 21.2 30.5 26 27 68
T150-10 10.5 16.5 21.2 30.5 26 27 68
T150-12 13 16.5 21.2 30.5 26 27 68
T150-14 15 16.5 21.2 30.5 26 27 68
T150-16 17 16.5 21.2 30.5 26 27 68
T185-6 6.5 18.5 23.5 34 32 29 78
T185-8 8.5 18.5 23.5 34 32 29 78
T185-10 10.5 18.5 23.5 34 32 29 78
T185-12 13 18.5 23.5 34 32 29 78
T185-14 15 18.5 23.5 34 32 29 78
T185-16 17 18.5 23.5 34 32 29 78
T240-6 6.2 21 26.5 38.5 38 34 90
T240-8 8.2 21 26.5 38.5 38 34 90
T240-10 10.5 21 26.5 38.5 38 34 90
T240-12 13 21 26.5 38.5 38 34 90
T240-14 15 21 26.5 38.5 38 34 90
T240-16 17 21 26.5 38.5 38 34 90
T240-18 19 21 26.5 38.5 38 34 90
T240-20 21 21 26.5 38.5 38 34 90
T300-8 8.5 23.5 30 43.5 42 37 101
T300-10 10.5 23.5 30 43.5 42 37 101
T300-12 13 23.5 30 43.5 42 37 101
T300-14 15 23.5 30 43.5 42 37 101
T300-16 17 23.5 30 43.5 42 37 101
T300-18 19 23.5 30 43.5 42 37 101
T300-20 21 23.5 30 43.5 42 37 101
T400-12 13 28.5 36.5 53 44 44 113
T400-14 15 28.5 36.5 53 44 44 113
T400-16 17 28.5 36.5 53 44 44 113
T400-18 19 28.5 36.5 53 44 44 113
T400-20 21 28.5 36.5 53 44 44 113
T400-22 23 28.5 36.5 53 44 44 113
T500-12 13 30 39 56 48 48 124
T500-14 15 30 39 56 48 48 124
T500-16 17 30 39 56 48 48 124
T500-18 19 30 39 56 48 48 124
T500-20 21 30 39 56 48 48 124
T500-22 23 30 39 56 48 48 124
T630-12 13 34.5 44 63.5 52 51 130
T630-14 15 34.5 44 63.5 52 51 130
T630-16 17 34.5 44 63.5 52 51 130
T630-18 19 34.5 44 63.5 52 51 130
T630-20 21 34.5 44 63.5 52 51 130
T630-22 23 34.5 44 63.5 52 51 130
T800-14 15 40 51.2 74 54 56 140
T800-16 17 40 51.2 74 54 56 140
T800-18 19 40 51.2 74 54 56 140
T800-20 21 40 51.2 74 54 56 140
T1000-14 15 44 56.6 81.5 60 56 146
T1000-16 17 44 56.6 81.5 60 56 146
T1000-18 19 44 56.6 81.5 60 56 146
T1000-20 21 44 56.6 81.5 60 56 146
T1000-22 23 44 56.5 81.5 60 56 146
