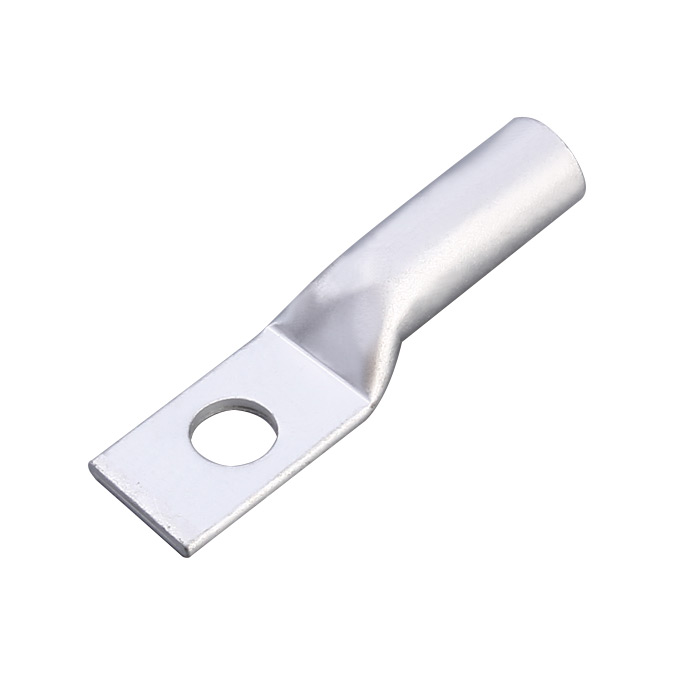

LCL Single Holes Copper Cable Terminal Lugs
LCL Single Holes Copper Cable Terminal Lugs
Material: Surface:
Has provide machanical strength for heavy duty applications.
Suitable use with cable size from 10-500 SQ.MM.12-35KV.
Material: Copper tube Cu 99% up
Surface: Tin plated-
Description
| Items |
d2 |
d1 |
D |
A |
B |
E |
F |
H |
L |
| LCL10-6 |
6.2 |
4.5 |
6.2 |
7.5 |
12.0 |
21.5 |
7.4 |
9.5 |
45.9 |
| LCL10-8 |
8.2 |
4.5 |
6.2 |
7.5 |
12.0 |
21.5 |
7.4 |
9.5 |
45.9 |
| LCL10-10 |
10.2 |
4.5 |
6.2 |
7.5 |
14.0 |
21.5 |
7.4 |
9.5 |
45.9 |
| LCL16-6 |
6.2 |
5.4 |
7.1 |
8.0 |
12.0 |
25.0 |
7.4 |
10.0 |
50.4 |
| LCL16-8 |
8.2 |
5.4 |
7.1 |
8.0 |
12.0 |
25.0 |
7.4 |
10.0 |
50.4 |
| LCL16-10 |
10.2 |
5.4 |
7.1 |
8.0 |
14.0 |
25.0 |
7.4 |
10.0 |
50.4 |
| LCL16-12 |
12.5 |
5.4 |
7.1 |
8.0 |
16.5 |
25.0 |
7.4 |
10.0 |
50.4 |
| LCL25-6 |
6.2 |
6.8 |
8.8 |
8.5 |
15.0 |
28.5 |
7.4 |
10.5 |
54.9 |
| LCL25-8 |
8.2 |
6.8 |
8.8 |
8.5 |
15.0 |
28.5 |
7.4 |
10.5 |
54.9 |
| LCL25-10 |
10.2 |
6.8 |
8.8 |
8.5 |
15.0 |
28.5 |
7.4 |
10.5 |
54.9 |
| LCL25-12 |
12.2 |
6.8 |
8.8 |
8.5 |
16,5 |
28.5 |
7.4 |
10.5 |
54.9 |
| LCL35-6 |
6.5 |
8.2 |
10.6 |
9.0 |
17.0 |
32.0 |
8.0 |
11.0 |
60.0 |
| LCL35-8 |
8.5 |
8.2 |
10.6 |
9.0 |
17.0 |
32.0 |
8.0 |
11.0 |
60.0 |
| LCL35-10 |
10.5 |
8.2 |
10.6 |
9.0 |
17.0 |
32.0 |
8.0 |
11.0 |
60.0 |
| LCL35-12 |
12.5 |
8.2 |
10.6 |
9.0 |
17.0 |
32.0 |
8.0 |
11.0 |
60.0 |
| LCL50-8 |
8.5 |
9.5 |
12.4 |
12.7 |
19.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| LCL50-10 |
10.5 |
9.5 |
12.4 |
12.7 |
19.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| LCL50-12 |
13.0 |
9.5 |
12.4 |
12.7 |
19.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| LCL50-14 |
15.0 |
9.5 |
12.4 |
12.7 |
21.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| LCL50-16 |
17.0 |
9.5 |
12.4 |
12.7 |
23.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| LCL70-8 |
8.5 |
11.2 |
14.7 |
13.9 |
21.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| LCL70-10 |
10.5 |
11.2 |
14.7 |
13.9 |
21.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| LCL70-12 |
13.0 |
11.2 |
14.7 |
13.9 |
21.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| LCL70-14 |
15.0 |
11.2 |
14.7 |
13.9 |
21.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| LCL70-16 |
17.0 |
11.2 |
14.7 |
13.9 |
24.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| LCL95-8 |
8.5 |
13.5 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| LCL95-10 |
10.5 |
13.5 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| LCL95-12 |
13.0 |
13.5 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| LCL95-14 |
15.0 |
13.5 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| LCL95-16 |
17.0 |
13.5 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| LCL120-8 |
8.5 |
15.0 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| LCL120-10 |
10.5 |
15.0 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| LCL120-12 |
13.0 |
15.0 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| LCL120-14 |
15.0 |
15.0 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| LCL120-16 |
17.0 |
15.0 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| LCL150-10 |
10.5 |
16.5 |
21.2 |
13.9 |
30.5 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL150-12 |
13.0 |
16.5 |
21.2 |
13.9 |
30.5 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL150-14 |
15.0 |
16.5 |
21.2 |
13.9 |
30.5 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL150-16 |
17.0 |
16.5 |
21.2 |
13.9 |
30.5 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL185-12 |
13.0 |
18.5 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL185-14 |
15.0 |
18.5 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL185-16 |
17.0 |
18.5 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL185-18 |
19.0 |
18.5 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL185-20 |
21.0 |
18.5 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| LCL240-12 |
13.0 |
21.0 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| LCL240-14 |
15.0 |
21.0 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| LCL240-16 |
17.0 |
21.0 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| LCL240-18 |
19.0 |
21.0 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| LCL240-20 |
21.0 |
21.0 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| LCL300-12 |
13.0 |
23.5 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| LCL300-14 |
15.0 |
23.5 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| LCL300-16 |
17.0 |
23.5 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| LCL300-18 |
19.0 |
23.5 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| LCL300-20 |
21.0 |
23.5 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| LCL400-12 |
13.0 |
28.5 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| LCL400-14 |
15.0 |
28.5 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| LCL400-16 |
17.0 |
28.5 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| LCL400-18 |
19.0 |
28.5 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| LCL400-20 |
21.0 |
28.5 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| LCL400-22 |
23.0 |
28.5 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| LCL500-12 |
13.0 |
30.0 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| LCL500-14 |
15.0 |
30.0 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| LCL500-16 |
17.0 |
30.0 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| LCL500-18 |
19.0 |
30.0 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| LCL500-20 |
21.0 |
30.0 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| LCL500-22 |
23.0 |
30.0 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| LCL630-12 |
13.0 |
34.5 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| LCL630-14 |
15.0 |
34.5 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| LCL630-16 |
17.0 |
34.5 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| LCL630-18 |
19.0 |
34.5 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| LCL630-20 |
21.0 |
34.5 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| LCL630-22 |
23.0 |
34.5 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| LCL800-14 |
15.0 |
40.0 |
51.2 |
29.0 |
74.0 |
85.0 |
41.8 |
33.0 |
188.8 |
| LCL800-16 |
17.0 |
40.0 |
51.2 |
29.0 |
74.0 |
85.0 |
41.8 |
33.0 |
188.8 |
| LCL800-18 |
19.0 |
40.0 |
51.2 |
29.0 |
74.0 |
85.0 |
41.8 |
33.0 |
188.8 |
| LCL800-20 |
21.0 |
40.0 |
51.2 |
29.0 |
74.0 |
85.0 |
41.8 |
33.0 |
188.8 |
| LCL1000-14 |
15.0 |
44.0 |
56.6 |
31.0 |
81.5 |
90.0 |
45.0 |
36.0 |
202.0 |
| LCL1000-16 |
17.0 |
44.0 |
56.6 |
31.0 |
81.5 |
90.0 |
45.0 |
36.0 |
202.0 |
| LCL1000-18 |
19.0 |
44.0 |
56.6 |
31.0 |
81.5 |
90.0 |
45.0 |
36.0 |
202.0 |
| LCL1000-20 |
21.0 |
44.0 |
56.6 |
31.0 |
81.5 |
90.0 |
45.0 |
36.0 |
202.0 |
