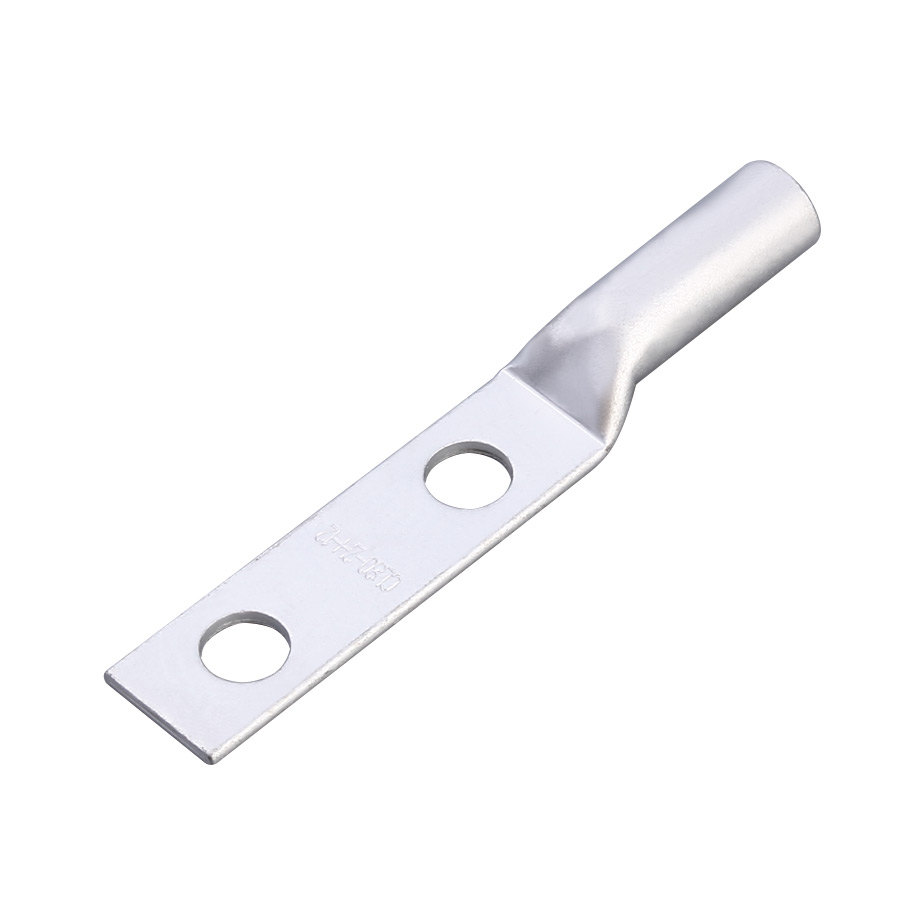

TTL copper tube terminal
Permited crimp in larger size for additional assurance on heary duty load suitable for terminating cable size from 10- 500 SQ.MM.12-35kv.
Material:Copper tube Cu 99% up
Surface:Tin plated
.jpg)
Description
| Items |
d2 |
d1 |
D |
A |
B |
C |
E |
F |
H |
L |
| TTL10-6 |
6.2 |
4.5 |
6.2 |
7.5 |
12.0 |
44.4 |
21.5 |
7.4 |
9.5 |
90.3 |
| TTL10-8 |
8.2 |
4.5 |
6.2 |
7.5 |
12.0 |
44.4 |
21.5 |
7.4 |
9.5 |
90.3 |
| TTL10-10 |
10.2 |
4.5 |
6.2 |
7.5 |
14.0 |
44.4 |
21.5 |
7.4 |
9.5 |
90.3 |
| TTL16-6 |
6.2 |
5.4 |
7.1 |
8.0 |
12.0 |
44.4 |
25.0 |
7.4 |
10.0 |
94.8 |
| TTL16-8 |
8.2 |
5.4 |
7.1 |
8.0 |
12.0 |
44.4 |
25.0 |
7.4 |
10.0 |
94.8 |
| TTL16-10 |
10.2 |
5.4 |
7.1 |
8.0 |
14.0 |
44.4 |
25.0 |
7.4 |
10.0 |
94.8 |
| TTL16-12 |
12.2 |
5.4 |
7.1 |
8.0 |
16.5 |
44.4 |
25.0 |
7.4 |
10.0 |
94.8 |
| TTL25-6 |
6.2 |
6.8 |
8.8 |
8.5 |
15.0 |
44.4 |
28.5 |
7.4 |
10.5 |
99.3 |
| TTL25-8 |
8.2 |
6.8 |
8.8 |
8.5 |
15.0 |
44.4 |
28.5 |
7.4 |
10.5 |
99.3 |
| TTL25-10 |
10.2 |
6.8 |
8.8 |
8.5 |
15.0 |
44.4 |
28.5 |
7.4 |
10.5 |
99.3 |
| TTL25-12 |
12.2 |
6.8 |
8.8 |
8.5 |
16,5 |
44.4 |
28.5 |
7.4 |
10.5 |
99.3 |
| TTL35-6 |
65 |
8.2 |
10.6 |
9.0 |
17.0 |
44.4 |
32.0 |
8.0 |
11.0 |
104.4 |
| TTL35-8 |
8.5 |
8.2 |
10.6 |
9.0 |
17.0 |
44.4 |
32.0 |
8.0 |
11.0 |
104.4 |
| TTL35-10 |
10.5 |
8.2 |
10.6 |
9.0 |
17.0 |
44.4 |
32.0 |
8.0 |
11.0 |
104.4 |
| TTL35-12 |
12.5 |
8.2 |
10.6 |
9.0 |
17.0 |
44.4 |
32.0 |
8.0 |
11.0 |
104.4 |
| TTL50-8 |
8.5 |
9.5 |
12.4 |
12.7 |
19.0 |
44.4 |
35.0 |
10.9 |
14.7 |
117.7 |
| TTL50-10 |
10.5 |
9.5 |
12.4 |
12.7 |
19.0 |
44.4 |
35.0 |
10.9 |
14.7 |
117.7 |
| TTL50-12 |
12.5 |
9.5 |
12.4 |
12.7 |
19.0 |
44.4 |
35.0 |
10.9 |
14.7 |
117.7 |
| TTL50-14 |
15.0 |
9.5 |
12.4 |
12.7 |
21.0 |
44.4 |
35.0 |
10.9 |
14.7 |
117.7 |
| TTL50-16 |
17.0 |
9.5 |
12.4 |
12.7 |
23.0 |
44.4 |
35.0 |
10.9 |
14.7 |
117.7 |
| TTL70-8 |
8.5 |
11.2 |
14.7 |
13.9 |
21.0 |
44.4 |
35.0 |
10.9 |
17.9 |
122.1 |
| TTL70-10 |
10.5 |
11.2 |
14.7 |
13.9 |
21.0 |
44.4 |
35.0 |
10.9 |
17.9 |
122.1 |
| TTL70-12 |
12.5 |
11.2 |
14.7 |
13.9 |
21.0 |
44.4 |
35.0 |
10.9 |
17.9 |
122.1 |
| TTL70-14 |
15.0 |
11.2 |
14.7 |
13.9 |
21.0 |
44.4 |
35.0 |
10.9 |
17.9 |
122.1 |
| TTL70-16 |
17.0 |
11.2 |
14.7 |
13.9 |
24.0 |
44.4 |
35.0 |
10.9 |
17.9 |
122.1 |
| TTL95-8 |
8.5 |
13.5 |
17.4 |
13.9 |
25.5 |
44.4 |
38.0 |
15.8 |
17.9 |
130.0 |
| TTL95-10 |
10.5 |
13.5 |
17.4 |
13.9 |
25.5 |
44.4 |
38.0 |
15.8 |
17.9 |
130.0 |
| TTL95-12 |
13.0 |
13.5 |
17.4 |
13.9 |
25.5 |
44.4 |
38.0 |
15.8 |
17.9 |
130.0 |
| TTL95-14 |
15.0 |
13.5 |
17.4 |
13.9 |
25.5 |
44.4 |
38.0 |
15.8 |
17.9 |
130.0 |
| TTL95-16 |
17.0 |
13.5 |
17.4 |
13.9 |
25.5 |
44.4 |
38.0 |
15.8 |
17.9 |
130.0 |
| TTL120-8 |
8.2 |
15.0 |
19.4 |
13.9 |
28.0 |
44.4 |
40.0 |
18.8 |
17.9 |
135.0 |
| TTL120-10 |
10.5 |
15.0 |
19.4 |
13.9 |
28.0 |
44.4 |
40.0 |
18.8 |
17.9 |
135.0 |
| TTL120-12 |
13.0 |
15.0 |
19.4 |
13.9 |
28.0 |
44.4 |
40.0 |
18.8 |
17.9 |
135.0 |
| TTL120-14 |
15.0 |
15.0 |
19.4 |
13.9 |
28.0 |
44.4 |
40.0 |
18.8 |
17.9 |
135.0 |
| TTL120-16 |
17.0 |
15.0 |
19.4 |
13.9 |
28.0 |
44.4 |
40.0 |
18.8 |
17.9 |
135.0 |
| TTL150-10 |
10.5 |
16.5 |
21.2 |
13.9 |
30.5 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL150-12 |
13.0 |
16.5 |
21.2 |
13.9 |
30.5 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL150-14 |
15.0 |
16.5 |
21.2 |
13.9 |
30.5 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL150-16 |
17.0 |
16.5 |
21.2 |
13.9 |
30.5 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL185-12 |
13.0 |
18.5 |
23.5 |
13.9 |
34.0 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL185-14 |
15.0 |
18.5 |
23.5 |
13.9 |
34.0 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL185-16 |
17.0 |
18.5 |
23.5 |
13.9 |
34.0 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL185-18 |
19.0 |
18.5 |
23.5 |
13.9 |
34.0 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL185-20 |
21.0 |
18.5 |
23.5 |
13.9 |
34.0 |
44.4 |
50.0 |
19.8 |
17.9 |
146.0 |
| TTL240-12 |
13.0 |
21.0 |
26.5 |
13.9 |
38.5 |
44.4 |
56.0 |
24.8 |
17.9 |
157.0 |
| TTL240-14 |
15.0 |
21.0 |
26.5 |
13.9 |
38.5 |
44.4 |
56.0 |
24.8 |
17.9 |
157.0 |
| TTL240-16 |
17.0 |
21.0 |
26.5 |
13.9 |
38.5 |
44.4 |
56.0 |
24.8 |
17.9 |
157.0 |
| TTL240-18 |
19.0 |
21.0 |
26.5 |
13.9 |
38.5 |
44.4 |
56.0 |
24.8 |
17.9 |
157.0 |
| TTL240-20 |
21.0 |
21.0 |
26.5 |
13.9 |
38.5 |
44.4 |
56.0 |
24.8 |
17.9 |
157.0 |
| TTL300-12 |
13.0 |
23.5 |
30.0 |
13.9 |
43.5 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL300-14 |
15.0 |
23.5 |
30.0 |
13.9 |
43.5 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL300-16 |
17.0 |
23.5 |
30.0 |
13.9 |
43.5 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL300-18 |
19.0 |
23.5 |
30.0 |
13.9 |
43.5 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL300-20 |
21.0 |
23.5 |
30.0 |
13.9 |
43.5 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL400-12 |
13.0 |
28.5 |
36.5 |
13.9 |
53.0 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL400-14 |
15.0 |
28.5 |
36.5 |
13.9 |
53.0 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL400-16 |
17.0 |
28.5 |
36.5 |
13.9 |
53.0 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL400-18 |
19.0 |
28.5 |
36.5 |
13.9 |
53.0 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL400-20 |
21.0 |
28.5 |
36.5 |
13.9 |
53.0 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL400-22 |
23.0 |
28.5 |
36.5 |
13.9 |
53.0 |
44.4 |
67.0 |
26.8 |
17.9 |
170.0 |
| TTL500-12 |
13.0 |
30.0 |
39.0 |
13.9 |
56.0 |
44.4 |
75.0 |
33.8 |
17.9 |
185.0 |
| TTL500-14 |
15.0 |
30.0 |
39.0 |
13.9 |
56.0 |
44.4 |
75.0 |
33.8 |
17.9 |
185.0 |
| TTL500-16 |
17.0 |
30.0 |
39.0 |
13.9 |
56.0 |
44.4 |
75.0 |
33.8 |
17.9 |
185.0 |
| TTL500-18 |
19.0 |
30.0 |
39.0 |
13.9 |
56.0 |
44.4 |
75.0 |
33.8 |
17.9 |
185.0 |
| TTL500-20 |
21.0 |
30.0 |
39.0 |
13.9 |
56.0 |
44.4 |
75.0 |
33.8 |
17.9 |
185.0 |
| TTL500-22 |
23.0 |
30.0 |
39.0 |
13.9 |
56.0 |
44.4 |
75.0 |
33.8 |
17.9 |
185.0 |
| TTL630-12 |
13.0 |
34.5 |
44.0 |
16.5 |
63.5 |
44.4 |
80.0 |
37.8 |
20.5 |
199.2 |
| TTL630-14 |
15.0 |
34.5 |
44.0 |
16.5 |
63.5 |
44.4 |
80.0 |
37.8 |
20.5 |
199.2 |
| TTL630-16 |
17.0 |
34.5 |
44.0 |
16.5 |
63.5 |
44.4 |
80.0 |
37.8 |
20.5 |
199.2 |
| TTL630-18 |
19.0 |
34.5 |
44.0 |
16.5 |
63.5 |
44.4 |
80.0 |
37.8 |
20.5 |
199.2 |
| TTL630-20 |
21.0 |
34.5 |
44.0 |
16.5 |
63.5 |
44.4 |
80.0 |
37.8 |
20.5 |
199.2 |
| TTL630-22 |
23.0 |
34.5 |
44.0 |
16.5 |
63.5 |
44.4 |
80.0 |
37.8 |
20.5 |
199.2 |
| TTL800-14 |
15.0 |
40.0 |
51.2 |
16.5 |
74.0 |
44.4 |
85.0 |
41.8 |
25.5 |
213.2 |
| TTL800-16 |
17.0 |
40.0 |
51.2 |
16.5 |
74.0 |
44.4 |
85.0 |
41.8 |
25.5 |
213.2 |
| TTL800-18 |
19.0 |
40.0 |
51.2 |
16.5 |
74.0 |
44.4 |
85.0 |
41.8 |
25.5 |
213.2 |
| TTL800-20 |
21.0 |
40.0 |
51.2 |
16.5 |
74.0 |
44.4 |
85.0 |
41.8 |
25.5 |
213.2 |
| TTL1000-14 |
15.0 |
44.0 |
56.6 |
16.5 |
81.5 |
44.4 |
90.0 |
45.0 |
30.5 |
226.4 |
| TTL1000-16 |
17.0 |
44.0 |
56.6 |
16.5 |
81.5 |
44.4 |
90.0 |
45.0 |
30.5 |
226.4 |
| TTL1000-18 |
19.0 |
44.0 |
56.6 |
16.5 |
81.5 |
44.4 |
90.0 |
45.0 |
30.5 |
226.4 |
| TTL1000-20 |
21.0 |
44.0 |
56.6 |
16.5 |
81.5 |
44.4 |
90.0 |
45.0 |
30.5 |
226.4 |
