SCL copper tube terminal

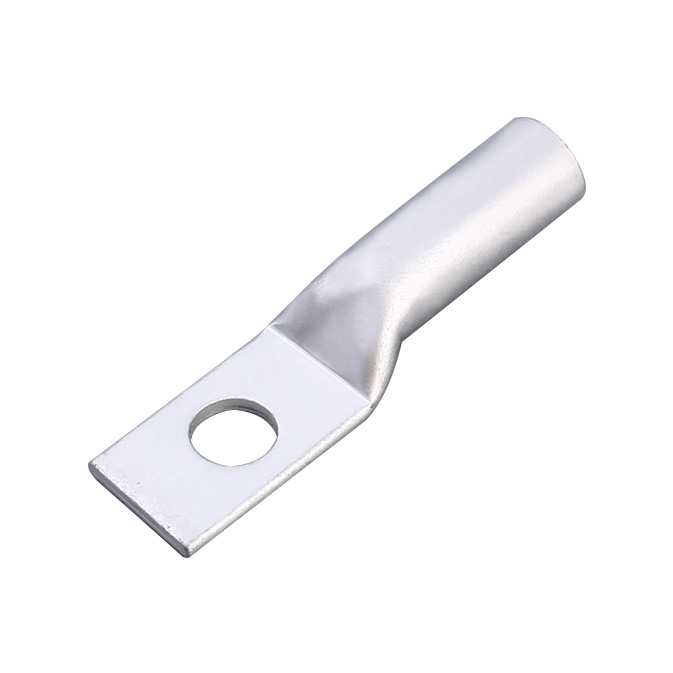

SCL Single Hole Copper Tube Terminals
Has provide machanical strength for heavy duty applications.
Suitable use with cable size from 10-500 SQ.MM.12-35KV.
Material:Copper tube Cu 99% up
Surface:Tin plated
Description
| Items |
d2 |
d1 |
D |
A |
B |
E |
F |
H |
L |
| SCL10-6 |
6.2 |
4.6 |
6.2 |
7.5 |
12.0 |
21.5 |
7.4 |
9.5 |
45.9 |
| SCL10-8 |
8.2 |
4.6 |
6.2 |
7.5 |
12.0 |
21.5 |
7.4 |
9.5 |
45.9 |
| SCL10-10 |
10.2 |
4.6 |
6.2 |
7.5 |
14.0 |
21.5 |
7.4 |
9.5 |
45.9 |
| SCL16-6 |
6.2 |
5.5 |
7.1 |
8.0 |
12.0 |
25.0 |
7.4 |
10.0 |
50.4 |
| SCL16-8 |
8.2 |
5.5 |
7.1 |
8.0 |
12.0 |
25.0 |
7.4 |
10.0 |
50.4 |
| SCL16-10 |
10.2 |
5.5 |
7.1 |
8.0 |
14.0 |
25.0 |
7.4 |
10.0 |
50.4 |
| SCL16-12 |
12.5 |
5.5 |
7.1 |
8.0 |
16.5 |
25.0 |
7.4 |
10.0 |
50.4 |
| SCL25-6 |
6.2 |
7.0 |
8.8 |
8.5 |
15.0 |
28.5 |
7.4 |
10.5 |
54.9 |
| SCL25-8 |
8.2 |
7.0 |
8.8 |
8.5 |
15.0 |
28.5 |
7.4 |
10.5 |
54.9 |
| SCL25-10 |
10.2 |
7.0 |
8.8 |
8.5 |
15.0 |
28.5 |
7.4 |
10.5 |
54.9 |
| SCL25-12 |
12.5 |
7.0 |
8.8 |
8.5 |
16,5 |
28.5 |
7.4 |
10.5 |
54.9 |
| SCL35-6 |
6.5 |
8.6 |
10.6 |
9.0 |
17.0 |
32.0 |
8.0 |
11.0 |
60.0 |
| SCL35-8 |
8.5 |
8.6 |
10.6 |
9.0 |
17.0 |
32.0 |
8.0 |
11.0 |
60.0 |
| SCL35-10 |
10.5 |
8.6 |
10.6 |
9.0 |
17.0 |
32.0 |
8.0 |
11.0 |
60.0 |
| SCL35-12 |
12.5 |
8.6 |
10.6 |
9.0 |
17.0 |
32.0 |
8.0 |
11.0 |
60.0 |
| SCL50-8 |
8.5 |
10.0 |
12.4 |
12.7 |
19.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| SCL50-10 |
10.5 |
10.0 |
12.4 |
12.7 |
19.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| SCL50-12 |
12.5 |
10.0 |
12.4 |
12.7 |
19.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| SCL50-14 |
15.0 |
10.0 |
12.4 |
12.7 |
21.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| SCL50-16 |
17.0 |
10.0 |
12.4 |
12.7 |
23.0 |
35.0 |
10.9 |
14.7 |
73.3 |
| SCL70-8 |
8.5 |
11.9 |
14.7 |
13.9 |
21.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| SCL70-10 |
10.5 |
11.9 |
14.7 |
13.9 |
21.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| SCL70-12 |
12.5 |
11.9 |
14.7 |
13.9 |
21.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| SCL70-14 |
15.0 |
11.9 |
14.7 |
13.9 |
21.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| SCL70-16 |
17.0 |
11.9 |
14.7 |
13.9 |
24.0 |
35.0 |
10.9 |
17.9 |
77.7 |
| SCL95-8 |
8.5 |
14.2 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| SCL95-10 |
10.5 |
14.2 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| SCL95-12 |
13.0 |
14.2 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| SCL95-14 |
15.0 |
14.2 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| SCL95-16 |
17.0 |
14.2 |
17.4 |
13.9 |
25.5 |
38.0 |
15.8 |
17.9 |
85.6 |
| SCL120-8 |
8.5 |
15.8 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| SCL120-10 |
10.5 |
15.8 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| SCL120-12 |
13.0 |
15.8 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| SCL120-14 |
15.0 |
15.8 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| SCL120-16 |
17.0 |
15.8 |
19.4 |
13.9 |
28.0 |
40.0 |
18.8 |
17.9 |
90.6 |
| SCL150-10 |
10.5 |
17.4 |
21.2 |
13.9 |
30.5 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL150-12 |
13.0 |
17.4 |
21.2 |
13.9 |
30.5 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL150-14 |
15.0 |
17.4 |
21.2 |
13.9 |
30.5 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL150-16 |
17.0 |
17.4 |
21.2 |
13.9 |
30.5 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL185-12 |
13.0 |
19.1 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL185-14 |
15.0 |
19.1 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL185-16 |
17.0 |
19.1 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL185-18 |
19.0 |
19.1 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL185-20 |
21.0 |
19.1 |
23.5 |
13.9 |
34.0 |
50.0 |
19.8 |
17.9 |
101.6 |
| SCL240-12 |
13.0 |
21.9 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| SCL240-14 |
15.0 |
21.9 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| SCL240-16 |
17.0 |
21.9 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| SCL240-18 |
19.0 |
21.9 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| SCL240-20 |
21.0 |
21.9 |
26.5 |
15.9 |
38.5 |
56.0 |
24.8 |
19.9 |
116.6 |
| SCL300-12 |
13.0 |
24.6 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| SCL300-14 |
15.0 |
24.6 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| SCL300-16 |
17.0 |
24.6 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| SCL300-18 |
19.0 |
24.6 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| SCL300-20 |
21.0 |
24.6 |
30.0 |
20.0 |
43.0 |
67.0 |
26.8 |
24.0 |
137.8 |
| SCL400-12 |
13.0 |
29.9 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| SCL400-14 |
15.0 |
29.9 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| SCL400-16 |
17.0 |
29.9 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| SCL400-18 |
19.0 |
29.9 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| SCL400-20 |
21.0 |
29.9 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| SCL400-22 |
23.0 |
29.9 |
36.5 |
23.0 |
53.0 |
67.0 |
26.8 |
27.0 |
143.8 |
| SCL500-12 |
13.0 |
31.8 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| SCL500-14 |
15.0 |
31.8 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| SCL500-16 |
17.0 |
31.8 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| SCL500-18 |
19.0 |
31.8 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| SCL500-20 |
21.0 |
31.8 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| SCL500-22 |
23.0 |
31.8 |
39.0 |
23.0 |
56.0 |
75.0 |
33.8 |
27.0 |
158.8 |
| SCL630-12 |
13.0 |
36.0 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| SCL630-14 |
15.0 |
36.0 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| SCL630-16 |
17.0 |
36.0 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| SCL630-18 |
19.0 |
36.0 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| SCL630-20 |
21.0 |
36.0 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| SCL630-22 |
23.0 |
36.0 |
44.0 |
26.0 |
63.5 |
80.0 |
37.8 |
30.0 |
173.8 |
| SCL800-14 |
15.0 |
41.6 |
51.2 |
29.0 |
74.0 |
85.0 |
41.8 |
33.0 |
188.8 |
| SCL800-16 |
17.0 |
41.6 |
51.2 |
29.0 |
74.0 |
85.0 |
41.8 |
33.0 |
188.8 |
| SCL800-18 |
19.0 |
41.6 |
51.2 |
29.0 |
74.0 |
85.0 |
41.8 |
33.0 |
188.8 |
| SCL800-20 |
21.0 |
41.6 |
51.2 |
29.0 |
74.0 |
85.0 |
41.8 |
33.0 |
188.8 |
| SCL1000-14 |
15.0 |
46.6 |
56.6 |
31.0 |
81.5 |
90.0 |
45.0 |
36.0 |
202.0 |
| SCL1000-16 |
17.0 |
46.6 |
56.6 |
31.0 |
81.5 |
90.0 |
45.0 |
36.0 |
202.0 |
| SCL1000-18 |
19.0 |
46.6 |
56.6 |
31.0 |
81.5 |
90.0 |
45.0 |
36.0 |
202.0 |
| SCL1000-20 |
21.0 |
46.6 |
56.6 |
31.0 |
81.5 |
90.0 |
45.0 |
36.0 |
202.0 |
