Description
| MINIATURE CROSS SECTION |  |
||||
|---|---|---|---|---|---|
| BLACK | LENGTH mm(in.) | WIDTH mm(in.) | MAX. DIA. mm | MIN.STRENGTH kg(Lbs) | PACKING(pcs/bag) |
| TSL-80-M-MB | 78(3.0″) | 2.5±0.15(0.10″±0.006″) | 15(0.59″) | 8(18) | 1000 |
| TSL-80-M-YB | 78(3.0″) | 2.5±0.15(0.10″±0.006″) | 15(0.59″) | 8(18) | 100 |

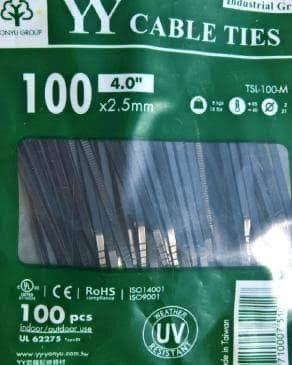

| TSL-100-M-MB | 100(4.0″) | 2.5±0.15(0.10″±0.006″) | 21(0.83″) | 8(18) | 1000 |
| TSL-100-M-YB | 100(4.0″) | 2.5±0.15(0.10″±0.006″) | 21(0.83″) | 8(18) | 100 |
| TSL-120-M-MB | 120(4″) | 2.5±0.15(0.10″±0.006″) | 28(1.10″) | 8(18) | 1000 |
| TSL-120-M-YB | 120(4″) | 2.5±0.15(0.10″±0.006″) | 28(1.10″) | 8(18) | 100 |
| TSL-140-M-MB | 140(5.5″) | 2.5±0.15(0.10″±0.006″) | 33(1.30″) | 8(18) | 1000 |
| TSL-140-M-YB | 140(5.5″) | 2.5±0.15(0.10″±0.006″) | 33(1.30″) | 8(18) | 100 |
| TSL-160-M-MB | 161(6.3″) | 2.5±0.15(0.10″±0.006″) | 40(1.57″) | 8(18) | 1000 |
| TSL-160-M-YB | 161(6.3″) | 2.5±0.15(0.10″±0.006″) | 40(1.57″) | 8(18) | 100 |
| TSL-200-M-MB | 203(8.0″) | 2.5±0.15(0.10″±0.006″) | 52(2.05″) | 8(18) | 1000 |
| TSL-200-M-YB | 203(8.0″) | 2.5±0.15(0.10″±0.006″) | 52(2.05″) | 8(18) | 100 |
| INTERMEDIATE CROSS SECTION | |
||||
|---|---|---|---|---|---|
| BLACK | LENGTH mm(in.) | WIDTH mm(in.) | MAX. DIA. mm | MIN.STRENGTH kg(Lbs) | PACKING(pcs/bag) |
| TSL-140-I-MB | 142(5.5″) | 3.5±0.3(0.14″±0.012″) | 34(1.34″) | 18(40) | 1000 |
| TSL-140-I-YB | 142(5.5″) | 3.5±0.3(0.14″±0.012″) | 34(1.34″) | 18(40) | 100 |
| TSL-150-I-MB | 150(6.0″) | 3.5±0.3(0.14″±0.012″) | 37(1.46″) | 18(40) | 1000 |
| TSL-150-I-YB | 150(6.0″) | 3.5±0.3(0.14″±0.012″) | 37(1.46″) | 18(40) | 100 |
| TSL-180-I-MB | 180(7.1″) | 3.5±0.3(0.14″±0.012″) | 47(1.85″) | 18(40) | 1000 |
| TSL-180-I-YB | 180(7.1″) | 3.5±0.3(0.14″±0.012″) | 47(1.85″) | 18(40) | 100 |
| TSL-200-I-MB | 201(8.0″) | 3.5±0.3(0.14″±0.012″) | 52(2.05″) | 18(40) | 1000 |
| TSL-200-I-YB | 201(8.0″) | 3.5±0.3(0.14″±0.012″) | 52(2.05″) | 18(40) | 100 |
| TSL-250-I-MB | 250(9.8″) | 3.5±0.3(0.14″±0.012″) | 70(2.76″) | 18(40) | 1000 |
| TSL-250-I-YB | 250(9.8″) | 3.5±0.3(0.14″±0.012″) | 70(2.76″) | 18(40) | 100 |
| TSL-300-I-MB | 290(11.4″) | 3.5±0.3(0.14″±0.012″) | 82(3.23″) | 18(40) | 1000 |
| TSL-300-I-YB | 290(11.4″) | 3.5±0.3(0.14″±0.012″) | 82(3.23″) | 18(40) | 100 |
| TSL-370-I-MB | 372(14.6″) | 3.5±0.3(0.14″±0.012″) | 106(4.17″) | 18(40) | 1000 |
| TSL-370-I-YB | 372(14.6″) | 3.5±0.3(0.14″±0.012″) | 106(4.17″) | 18(40) | 100 |
| STANDARD CROSS SECTION | |
||||
|---|---|---|---|---|---|
| BLACK | LENGTH mm(in.) | WIDTH mm(in.) | MAX. DIA. mm | MIN.STRENGTH kg(Lbs) | PACKING(pcs/bag) |
| TSL-120-S-MB | 121(4.8″) | 4.6±0.3(0.18″±0.012″) | 25(0.98″) | 22(50) | 1000 |
| TSL-120-S-YB | 121(4.8″) | 4.6±0.3(0.18″±0.012″) | 25(0.98″) | 22(50) | 100 |
| TSL-160-S-MB | 157(6.2″) | 4.6±0.3(0.18″±0.012″) | 36(1.42″) | 22(50) | 1000 |
| TSL-160-S-YB | 157(6.2″) | 4.6±0.3(0.18″±0.012″) | 36(1.42″) | 22(50) | 100 |
| TSL-180-S-MB | 180(7.1″) | 4.6±0.3(0.18″±0.012″) | 41(1.61″) | 22(50) | 1000 |
| TSL-180-S-YB | 180(7.1″) | 4.6±0.3(0.18″±0.012″) | 41(1.61″) | 22(50) | 100 |
| TSL-190-S-MB | 188(7.4″) | 4.6±0.3(0.18″±0.012″) | 49(1.93″) | 22(50) | 1000 |
| TSL-190-S-YB | 188(7.4″) | 4.6±0.3(0.18″±0.012″) | 49(1.93″) | 22(50) | 100 |
| TSL-200-S-MB | 199(8.0″) | 4.6±0.3(0.18″±0.012″) | 54(2.13″) | 22(50) | 1000 |
| TSL-200-S-YB | 199(8.0″) | 4.6±0.3(0.18″±0.012″) | 54(2.13″) | 22(50) | 100 |
| TSL-250-S-MB | 250(9.8″) | 4.6±0.3(0.18″±0.012″) | 68(2.68″) | 22(50) | 1000 |
| TSL-250-S-YB | 250(9.8″) | 4.6±0.3(0.18″±0.012″) | 68(2.68″) | 22(50) | 100 |
| TSL-290-S-YB | 288(11.0″) | 4.6±0.3(0.18″±0.012″) | 81(3.19″) | 22(50) | 100 |
| TSL-300-S-YB | 302(11.9″) | 4.6±0.3(0.18″±0.012″) | 84(3.31″) | 22(50) | 100 |
| TSL-370-S-YB | 371(14.6″) | 4.6±0.3(0.18″±0.012″) | 106(4.17″) | 22(50) | 100 |
| TSL-385-S-YB | 387(15.2″) | 4.6±0.3(0.18″±0.012″) | 114(4.49″) | 22(50) | 100 |
| TSL-430-S-YB | 430(16.9″) | 4.6±0.3(0.18″±0.012″) | 125(4.92″) | 22(50) | 100 |
| TSL-500-S-YB | 507(20.0″) | 4.6±0.3(0.18″±0.012″) | 151(5.94″) | 22(50) | 100 |
| TSL-530-S-YB | 533(21.0″) | 4.6±0.3(0.18″±0.012″) | 160(6.30″) | 22(50) | 100 |
| LIGHT HEAVY DUTY CROSS SECTION | |
||||
|---|---|---|---|---|---|
| BLACK | LENGTH mm(in.) | WIDTH mm(in.) | MAX. DIA. mm | MIN.STRENGTH kg(Lbs) | PACKING(pcs/bag) |
| TSL-150-LHD-YB | 149(5.9″) | 7.5±0.3(0.30″±0.012″) | 35(1.38″) | 54(120) | 100 |
| TSL-200-LHD-YB | 200(8.0″) | 7.5±0.3(0.30″±0.012″) | 54(2.13″) | 54(120) | 100 |
| TSL-290-LHD-YB | 290(11.4″) | 7.5±0.3(0.30″±0.012″) | 77(3.03″) | 54(120) | 100 |
| TSL-370-LHD-YB | 370(14.5″) | 7.5±0.3(0.30″±0.012″) | 101(3.98″) | 54(120) | 100 |
| TSL-450-LHD-YB | 450(17.7″) | 7.5±0.3(0.30″±0.012″) | 130(5.12″) | 54(120) | 100 |
| TSL-540-LHD-YB | 541(21.3″) | 7.5±0.3(0.30″±0.012″) | 160(6.30″) | 54(120) | 100 |
| TSL-610-LHD-YB | 610(24.0″) | 7.5±0.3(0.30″±0.012″) | 177(6.97″) | 54(120) | 100 |
| TSL-750-LHD-YB | 750(29.5″) | 7.5±0.3(0.30″±0.012″) | 222(8.74″) | 54(120) | 100 |
| HEAVY DUTY CROSS SECTION | |
||||
|---|---|---|---|---|---|
| BLACK | LENGTH mm(in.) | WIDTH mm(in.) | MAX. DIA. mm | MIN.STRENGTH kg(Lbs) | PACKING(pcs/bag) |
| TSL-430-HD-YB | 430(16.9″) | 8.7±0.4(0.34″±0.015″) | 115(4.53″) | 79(175) | 100 |
| TSL-530-HD-YB | 530(20.9″) | 8.7±0.4(0.34″±0.015″) | 145(5.71″) | 79(175) | 100 |
| TSL-610-HD-YB | 613(24.0″) | 8.7±0.4(0.34″±0.015″) | 175(6.89″) | 79(175) | 100 |
| TSL-710-HD-YB | 709(27.9″) | 8.7±0.4(0.34″±0.015″) | 207(8.15″) | 79(175) | 100 |
| TSL-770-HD-YB | 774(30.5″) | 8.7±0.4(0.34″±0.015″) | 226(8.90″) | 79(175) | 100 |
| TSL-800-HD-YB | 800(31.5″) | 8.7±0.4(0.34″±0.015″) | 232(9.13″) | 79(175) | 100 |
| TSL-910-HD-YB | 920(36.0″) | 8.7±0.4(0.34″±0.015″) | 278(10.94″) | 79(175) | 100 |
| TSL-950-HD-YB | 940(37.0″) | 8.7±0.4(0.34″±0.015″) | 284(11.18″) | 79(175) | 100 |
| TSL-1020-HD-YB | 1160(45.7″) | 8.7±0.4(0.34″±0.015″) | 355(13.98″) | 79(175) | 100 |
| TSL-1200-HD-YB | 1220(48.0″) | 8.7±0.4(0.34″±0.015″) | 374(14.72″) | 79(175) | 100 |
| TSL-1530-HD-YB | 1530(60.2″) | 8.7±0.4(0.34″±0.015″) | 460(18.11″) | 79(175) | 100 |
| EXTRA HEAVY DUTY CROSS SECTION | |
||||
|---|---|---|---|---|---|
| BLACK | LENGTH mm(in.) | WIDTH mm(in.) | MAX. DIA. mm | MIN.STRENGTH kg(Lbs) | PACKING(pcs/bag) |
| TSL-240-EHD-YB | 246(9.7″) | 12.4±0.45(0.49″±0.018″) | 64(2.52″) | 114(250) | 100 |
| TSL-300-EHD-YB | 293(11.5″) | 12.4±0.45(0.49″±0.018″) | 81(3.19″) | 114(250) | 100 |
| TSL-400-EHD-YB | 404(15.9″) | 12.4±0.45(0.49″±0.018″) | 114(4.49″) | 114(250) | 100 |
| TSL-500-EHD-YB | 510(20.1″) | 12.4±0.45(0.49″±0.018″) | 150(5.91″) | 114(250) | 100 |
| TSL-600-EHD-YB | 618(24.3″) | 12.4±0.45(0.49″±0.018″) | 181(7.13″) | 114(250) | 100 |
| TSL-700-EHD-YB | 724(28.5″) | 12.4±0.45(0.49″±0.018″) | 216(8.50″) | 114(250) | 100 |
| TSL-800-EHD-YB | 830(32.7″) | 12.4±0.45(0.49″±0.018″) | 248(9.76″) | 114(250) | 100 |
| TSL-1030-EHD-YB | 1015(40.2″) | 12.4±0.45(0.49″±0.018″) | 300(12.28″) | 114(250) | 100 |
