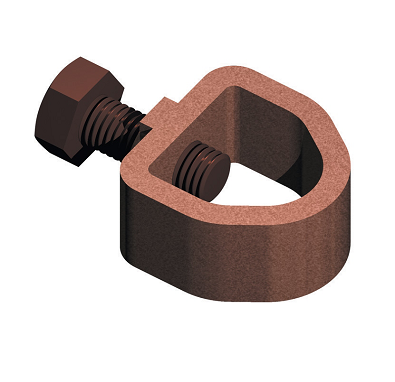

Rod to tape clamp (type A)

Rod to tape clamp (type A)

Corrosion resistance, conductivity and mechanical strength are essential considerations in clamp design to ensure an earthing system remains operative for many years.

SKU: aaddf02ab7e0 Categories: , , , , , Tag:

Description

Part no. ABB order code Nominal
rod diameter (“)		 Nominal rod diameter (mm) Max. conductor (mm) Weight each(kg)
CR105 7TCA083210R0004 Ø ½ Ø 12.7 26 x 12 0.15
Ø ½ Ø 16 26 x 12
Ø ¾ Ø 20 26 x 10
CR108 7TCA083210R0007 Ø ⅝ Ø 16 30 x 2 0.16
Ø ¾ Ø 20
CR110 7TCA083210R0008 Ø ⅝ Ø 16 40 x 12 0.24
CR115 7TCA083210R0009 Ø ⅝ Ø 16 51 x 8 0.30
CR125 7TCA083210R0010 Ø ¾ Ø 20 51 x 12 0.30
CR130 7TCA083210R0011 Ø ½ Ø 12.7 26 x 20 0.23
Ø ⅝ Ø 16 26 x 18
Ø ¾ Ø 20 26 x 10
Ø 1 Ø 25 26 x 10
